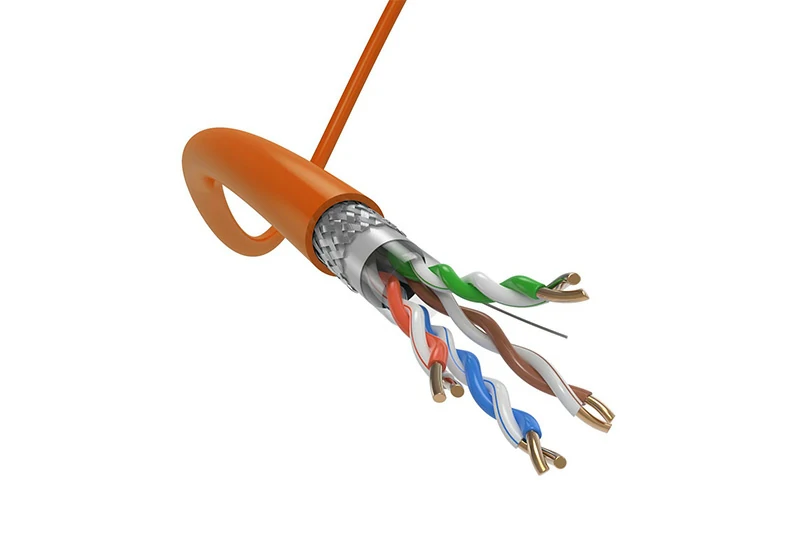

Cat5E SF-UTP Cable

Product Paramenters
· Item：Indoor SF-UTP Cat5E Cable 305m
· Type：CAT5E
· Shielding structure：SF-UTP
· Conductor：Bare Copper,24 AWG
· Number Of Conductor：4 Pairs
· Conductor diameter：1/0.48mm, 1/0.49mm, 1/0.50mm, 1/0.51mm (Customized Available)
· Insulation Material：HDPE
· Insulation Dia.：
· Shield(Tape)Matenal：(25U*20mm)Mylar +(58U*23mm) AL-foil
· Drain wire：0.4mm ,TC, TCCAM
· Jacket：PVC, LSZH, PE (outdoor), PVC+PE double sheath
· Diameter：6.8±0.3mm
· Thickness：0.6±0.05mm
· Flame Ratardancy：CM,CMX,CMR,CMP,Fca,Eca,Dca,Cca,B2ca
· Color：As client’s request
· Length：305m(1000ft )/Drum
· Packing：Wooden spool(wooden drum)
· Test：100% Passed the FLUKE 90M link and 100M channel test
· Reference Standard：YD/T1019-2001,ISO/IEC 11801,ANSI/TIA/EIA-568B,UL444
· Certificates：CE, RoHS，ISO9001
· Customizing：Words on cable & packaging customized on customers’ request
