Introduction

With increasing network speed demands, Cat5e cables (1Gbps) are no longer sufficient for many applications. As a result, Cat6 and Cat6a network cables have become the preferred choice. This guide will explain their differences, applications, and how to choose the right cable for your needs.

What Are Cat6 and Cat6a Cables?

Cat6 Ethernet Cable

  • Complies with ISO/IEC 11801:2002 and EIA/TIA 568B standards.
  • Bandwidth: 250MHz (twice that of Cat5e).
  • Max Speed: 1Gbps over 100m; supports 10Gbps but only up to 37-55m.
  • Commonly used for Gigabit Ethernet and home networks.

Cat 6 Thin Ethernet jumper, unshielded

Cat6a Ethernet Cable

  • Complies with ISO/IEC 11801:2008 standards.
  • Bandwidth: 500MHz (double that of Cat6).
  • Max Speed: 10Gbps over 100m.
  • Features thicker conductors and better shielding, reducing interference.
  • Ideal for data centers, enterprise networks, and industrial environments.

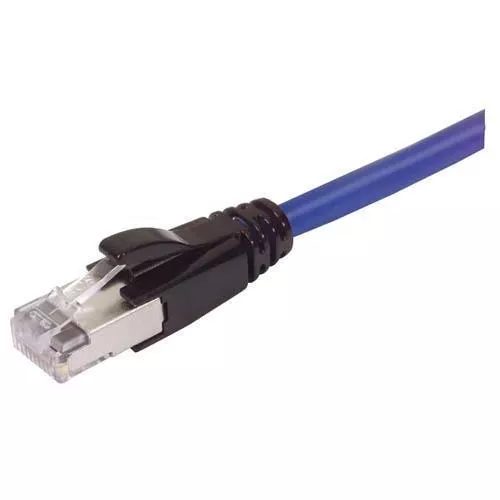

Cat 6a cable

Key Differences Between Cat6 and Cat6a

Feature Cat6 Cat6a
Max Speed 1Gbps (up to 100m) 10Gbps (up to 100m)
Bandwidth 250MHz 500MHz
Max Distance for 10Gbps 37-55m 100m
Crosstalk Protection Standard insulation Enhanced shielding for reduced interference
Cable Thickness Thinner, more flexible Thicker, less flexible
Cost Lower Higher

Applications of Cat6 and Cat6a Cables

  • Gigabit Networks (1Gbps): Both Cat6 and Cat6a are suitable.
  • 10Gbps Networks: Cat6a is the preferred choice for stable performance over 100m.
  • Data Centers & Enterprises: Cat6a provides better shielding against interference.
  • Industrial & Outdoor Use: Shielded Cat6a cables offer better protection from EMI and environmental factors.

How to Identify Cat6 vs. Cat6a Cables?

  1. Check the Label:
    • Cat6 cables are marked “CAT6”.
    • Cat6a cables are labeled “CAT6a”.
  2. Compare the Price:
    • Cat6a cables are generally more expensive due to higher quality materials and better shielding.
  3. Inspect the Design:
    • Cat6a has thicker conductors and a larger diameter for improved performance.

Best Cat6 and Cat6a Cables for Professional Use

Cat6 Shielded Cables (SFTP)

  • Dual-shielded with 100% foil and 65% braided shielding.
  • Ideal for environments with high EMI (electromagnetic interference).
  • Low-smoke halogen-free sheathing for enhanced safety.

Cat6a CMP-Rated Flame-Resistant Cables

  • CMP-rated (plenum-rated) for fire safety in commercial buildings.
  • Thin, flexible, and designed for dense patch panels.
  • Stable performance in temperatures from -20°C to +105°C.

Cat6a Industrial Outdoor Cables

  • FR-TPE (flame-retardant thermoplastic elastomer) sheath resists industrial oil, UV rays, and harsh environments.
  • Features IP67 waterproof RJ45 connectors for outdoor and rugged applications.
  • Rated for 1 million+ bending cycles, ensuring durability.

Conclusion: Which Cable Should You Choose?

  • For home and standard business networks: Cat6 is sufficient.
  • For high-performance 10Gbps applications: Cat6a is the better choice.
  • For industrial and outdoor environments: Choose shielded or rugged Cat6a cables.

Choosing the right cable ensures better performance, reduced interference, and long-term reliability in your network setup.
