For reliable 10 Gigabit Ethernet, Cat6A is the recommended standard, supporting 10Gbps speeds up to 100 meters. Cat7 and Cat8 offer higher performance.
Table of Contents
- Understanding the 10GbE Cable Requirement
- What are the Best Ethernet Cable Categories for 10Gbps?
- Comparing Key Cable Specifications for 10GbE
- Crucial Factors to Consider When Selecting Your Cable
- Frequently Asked Questions About 10 Gigabit Cabling
Understanding the 10GbE Cable Requirement

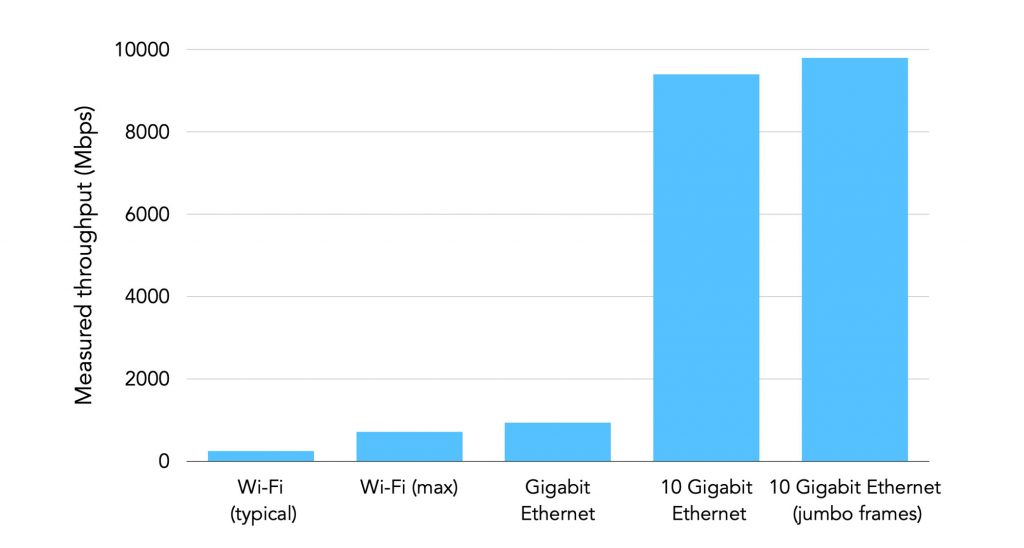

Achieving 10 Gigabits per second (Gbps) data rates demands more from network cabling than slower speeds like 1Gbps. The primary challenge is maintaining signal integrity over distance while combating interference and crosstalk. A 10GbE connection requires a cable with sufficient bandwidth—or frequency, measured in Megahertz (MHz)—to handle the massive amount of data being transmitted. Higher frequencies allow for greater data throughput but are also more susceptible to degradation over length and interference from outside sources.
Cables designed for 10Gbps speeds feature tighter wire twists, thicker conductors, and often improved shielding. These construction enhancements are critical for minimizing alien crosstalk (AXT), which is interference from cables in the same bundle. For a network to consistently perform at 10Gbps, every component, from the switch to the patch panel and the cable itself, must be rated to handle the speed. Selecting the proper cable is the foundational step to building a robust and high-performance network infrastructure.
What are the Best Ethernet Cable Categories for 10Gbps?
Which cable category is appropriate for your 10GbE setup? The answer depends on factors like distance, budget, and the level of electromagnetic interference (EMI) in your environment. Below is a detailed look at the most relevant options.
Category 6 (Cat6): The Conditional Option
Category 6 cable was originally designed for 1Gbps speeds at a bandwidth of 250 MHz. While it can technically support 10Gbps, its capability is severely limited by distance. Cat6 can only sustain a 10Gbps connection over distances of up to 55 meters (180 feet), and that’s in an ideal environment with minimal alien crosstalk. For shorter patch cords or runs within a single room or server rack, Cat6 might be a viable, cost-effective solution. However, for any new structured cabling installations intended for 10GbE, it is not the recommended choice due to its significant distance limitations.
Category 6A (Cat6A): The Recommended Standard
Category 6A (Augmented) is the industry-standard recommendation for 10GbE networks. It is specifically designed to support 10Gbps data rates at a bandwidth of 500 MHz over the full distance of a standard Ethernet channel: 100 meters (328 feet). Cat6A cables have improved construction with tighter twisted pairs and enhanced insulation to drastically reduce alien crosstalk compared to Cat6. This makes them a reliable and robust choice for both commercial and high-end residential networks. For anyone building a new network or upgrading an existing one to support 10Gbps speeds, Cat6A provides the best balance of performance, distance, and cost.
Category 7 (Cat7): A Step Up in Performance
Category 7 cables operate at a higher frequency of 600 MHz and feature mandatory, extensive shielding for every wire pair (S/FTP). This robust shielding provides excellent protection against EMI and crosstalk, allowing Cat7 to easily support 10Gbps up to 100 meters. While its performance specifications are impressive, Cat7 uses a proprietary GG45 or TERA connector and is not officially recognized by the TIA/EIA for Ethernet standards. It can use standard 8P8C (RJ45) connectors, but doing so negates some of its performance advantages. Because of the non-standard connectors and higher cost, it is less common in typical enterprise environments compared to Cat6A.
Category 8 (Cat8): For Future-Proofing and Data Centers
Category 8 is the most powerful twisted-pair copper cable available, designed for next-generation speeds of 25Gbps and 40Gbps. It operates at an immense bandwidth of 2000 MHz but is limited to a maximum channel length of 30 meters (98 feet). Because of this short distance, Cat8 is intended primarily for high-speed connections within data centers, such as linking servers to switches in the same rack or row (Top-of-Rack or End-of-Row configurations). While it is overkill for a standard office or home 10GbE network, it represents the pinnacle of copper cabling performance for short-distance, high-bandwidth applications.
Comparing Key Cable Specifications for 10GbE
To simplify the selection process, this table highlights the primary differences between the cable categories capable of handling 10Gbps speeds. Understanding these distinctions is key to making an informed decision for your specific networking needs.
| Specification | Cat6 | Cat6A | Cat7 | Cat8 |
|---|---|---|---|---|
| Max Data Rate | 10 Gbps | 10 Gbps | 10 Gbps | 40 Gbps |
| Max Distance for 10Gbps | Up to 55m (180 ft) | Up to 100m (328 ft) | Up to 100m (328 ft) | Up to 30m (98 ft) |
| Max Bandwidth (Frequency) | 250 MHz | 500 MHz | 600 MHz | 2000 MHz |
| Standard Shielding | Unshielded (UTP) | Shielded (F/UTP) or UTP | Shielded (S/FTP) | Shielded (S/FTP) |
| Primary Use Case | Short-run 10GbE, 1GbE | Standard 10GbE Networks | High-EMI 10GbE Networks | Data Centers (25/40GbE) |
Crucial Factors to Consider When Selecting Your Cable
Beyond the category rating, several other physical characteristics of the cable impact its performance, safety, and suitability for a given installation. Paying attention to these details ensures your network is both high-performing and compliant with local regulations.
Shielding: UTP vs. STP (F/UTP, S/FTP)
Ethernet cables come in two main types: unshielded and shielded.
- Unshielded Twisted Pair (UTP): This is the most common type, suitable for most home and office environments where there is little risk of electromagnetic interference (EMI).
- Shielded Twisted Pair (STP): This type includes a metallic foil or braid around the twisted pairs to protect against EMI. It is recommended for installations near high-power electrical lines, large motors, fluorescent lighting, and other sources of electrical noise. Categories like F/UTP (foil around all pairs) and S/FTP (braided shield around all pairs and foil around each individual pair) offer increasing levels of protection. Cat7 and Cat8 are inherently shielded.
Conductor Type: Solid vs. Stranded
The copper conductor inside the cable can be either a single solid wire or multiple strands of thinner wire.
- Solid Conductor: These cables offer superior electrical performance and are designed for permanent installations inside walls, ceilings, and conduit (structured cabling). They are less flexible than stranded cables.
- Stranded Conductor: These cables are more flexible and durable, making them ideal for patch cords that are frequently moved or bent, such as connecting a computer to a wall outlet or linking devices in a server rack.
Jacket Rating: Plenum, Riser, and CM
The outer sheath, or jacket, of a cable has a fire-resistance rating that is mandated by building codes.
- Plenum (CMP): This is the highest rating, required for cables run in plenum spaces (areas that facilitate air circulation for heating and air conditioning systems). Plenum jackets are fire-retardant and produce minimal toxic smoke.
- Riser (CMR): This rating is for cables run vertically between floors in non-plenum spaces.
- General Purpose (CM/CMG): This is a standard jacket for horizontal wiring on a single floor in areas without special fire-rating requirements.
The Importance of Verified Certifications
How can you be certain a cable will perform as advertised? Look for third-party certifications. Standards from organizations like the Telecommunications Industry Association (TIA) and the International Organization for Standardization (ISO) define the performance criteria for each cable category. Independent testing from labs like Underwriters Laboratories (UL) and Intertek (ETL) verifies that the cable meets these standards.
When sourcing your cables, look for proof of performance. High-quality manufacturers, such as DlayCable, offer fully certified Cat6A and Cat8 cables that have passed rigorous Fluke testing. This verification provides peace of mind that your network infrastructure is built on a foundation of reliability and will perform as expected under demanding 10Gbps loads, protecting your investment and ensuring maximum uptime.
Frequently Asked Questions About 10 Gigabit Cabling
Many common questions arise when planning a 10GbE network. Here are clear answers to some of the most frequent inquiries.
Can I really use Cat6 for 10Gbps?
Yes, but only for very short distances—officially up to 55 meters, but practically much less in environments with any signal noise. It is not a reliable solution for structured cabling runs between rooms or floors. For patch cables or connections within a single rack, it may be acceptable, but Cat6A is the far superior and more dependable choice.
Is it worth upgrading from Cat6A to Cat7 or Cat8 for a home network?
For nearly all home and small business networks, the answer is no. Cat6A is more than capable of handling 10Gbps over the distances required in such environments. Cat7’s non-standard connectors and Cat8’s extreme short-distance performance are designed for specialized, high-density environments like data centers. Sticking with a high-quality, certified Cat6A cable provides the best combination of performance and value.
How does cable length affect 10GbE performance?
Signal attenuation, or the weakening of a signal over distance, is a primary limiting factor in all network cabling. For 10GbE, this effect is more pronounced due to the high frequencies involved. Each cable category is rated for a maximum distance over which it can maintain 10Gbps performance. Exceeding this distance (e.g., running Cat6 beyond 55 meters or Cat6A beyond 100 meters) will result in data errors, packet loss, and a significant drop in connection speed, or a complete failure to link at 10Gbps.
