In today’s hyper-connected world, efficiency is key. Power over Ethernet (PoE) technology is a prime example, simplifying network installations by delivering both data and electrical power over a single network cable. A common question our experts at D-Lay Cable receive is: “Can a standard Cat5 cable handle PoE?”
The short answer is: Yes, but with critical considerations. While technically possible, using modern, certified Cat5e or higher is the recommended and professional standard for safety, reliability, and performance. As a leading manufacturer with over 15 years of experience in network cabling solutions, we’re here to provide a clear, in-depth explanation.
First, What Exactly is Power over Ethernet (PoE)?
Power over Ethernet is a networking standard that allows twisted-pair Ethernet cables to transmit low-voltage DC power alongside data signals to connected devices. This eliminates the need for a separate power supply and outlet for devices like:
- VoIP (Voice over IP) phones
- IP security cameras
- Wireless Access Points (WAPs)
- IoT sensors and devices
- Smart lighting systems
The primary benefit is simplified, more flexible, and cost-effective installation, as you only need to run one cable to each device.
The Core of the Matter: Cat5 vs. Cat5e for PoE
This is where the distinction becomes crucial. While often used interchangeably, “Cat5” and “Cat5e” are different standards with different capabilities.
Legacy “Cat5” Cable
The original Category 5 standard, now considered obsolete, was designed for data speeds up to 100 Mbps. It only required two of the four twisted pairs to function. While PoE standards can technically operate over these two pairs, legacy Cat5 cabling has significant drawbacks for modern PoE applications:
- Inconsistent Quality: Manufacturing standards were less stringent, leading to variations in conductor quality and twist rates.
- Higher DC Resistance: Poorer quality conductors can lead to more power loss as heat, reducing the power delivered to the device and potentially creating a safety concern.
- Not Optimized for PoE: The standard was created before PoE became widespread, so it wasn’t designed to handle the thermal load of carrying continuous power.
Our professional recommendation: Avoid using legacy Cat5 for new PoE installations. If you’re working with an existing network, it’s a risk that could lead to performance issues or device failure.
Modern “Cat5e” (Enhanced Category 5) Cable
Cat5e is the de facto minimum standard for modern networking. It was designed to support Gigabit Ethernet (1000 Mbps), which requires the use of all four twisted pairs. This, along with its stricter performance specifications, makes it inherently better for PoE.
- Stricter Standards: Cat5e has more rigorous specifications for crosstalk and system noise, ensuring better data and power signal integrity.

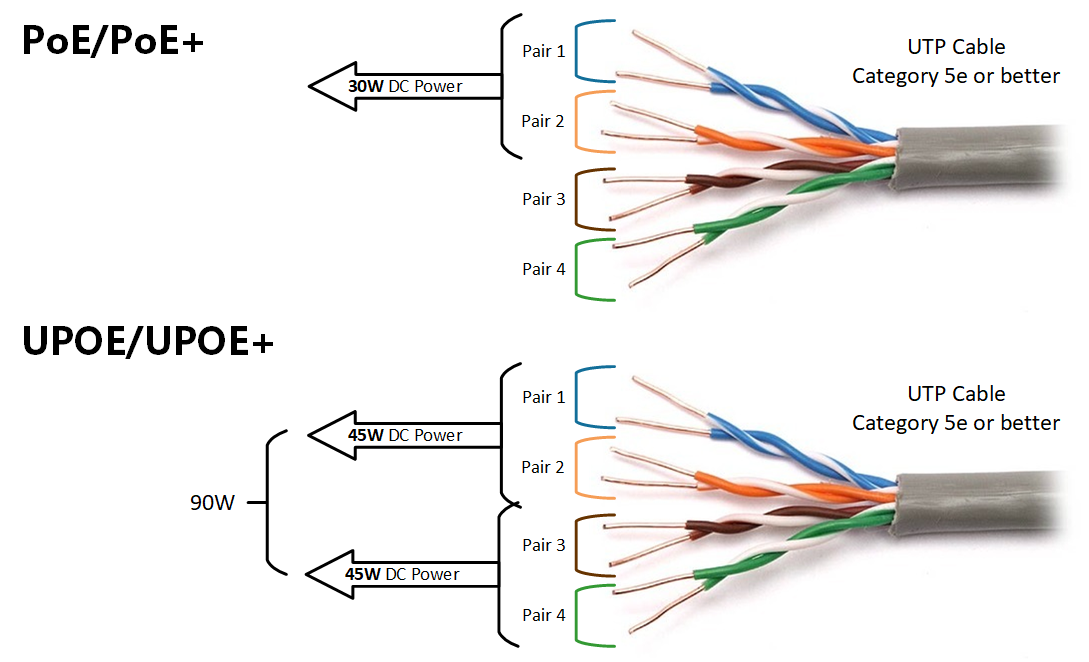

- Full Pair Utilization: It is designed for all four pairs to be active, which aligns perfectly with how modern PoE standards deliver power.
- Reliable for Standard PoE: High-quality, certified Cat5e cables, like those manufactured by D-Lay Cable, are perfectly suitable and reliable for the most common PoE standards (IEEE 802.3af and 802.3at).
Understanding PoE Standards and Cable Requirements
As technology has evolved, so have PoE standards, delivering progressively more power. The cable you choose directly impacts the performance of these standards.
| PoE Standard | IEEE Standard | Max Power to Device | D-Lay Cable’s Recommended Minimum Cable |
|---|---|---|---|
| PoE (Type 1) | 802.3af | ~13W | Cat5e |
| PoE+ (Type 2) | 802.3at | ~25.5W | High-Quality Cat5e / Recommended Cat6 |
| PoE++ (Type 3) | 802.3bt | ~51W | Cat6 / Recommended Cat6A |
| PoE++ (Type 4) | 802.3bt | ~71W | Cat6A |
As you can see, while Cat5e is the baseline, for higher-power PoE+ and PoE++ applications, upgrading to Cat6 or Cat6A is the superior choice. Their thicker copper conductors (lower AWG) dissipate heat more effectively and suffer less voltage drop over distance, ensuring your high-power devices get the stable energy they need.
Why Cable Quality is Non-Negotiable for PoE (The D-Lay Cable Advantage)
When power is involved, cutting corners on cable quality is a recipe for disaster. At D-Lay Cable, our commitment to quality is what sets our products apart and ensures your network’s safety and longevity.
1. Pure Bare Copper vs. CCA
All D-Lay Cable network cables are made with 100% pure bare copper conductors. Cheaper alternatives often use Copper Clad Aluminum (CCA), which has higher DC resistance. For PoE, this means CCA cables:
- Generate more heat, a potential fire hazard.
- Suffer significant voltage drop, starving your devices of power.
- Are brittle and more prone to breaking during installation.
- Do not comply with UL and TIA safety and performance standards.
2. The Importance of Certification
Our products are rigorously tested and certified (UL, ETL, CE, RoHS), guaranteeing they meet and exceed industry standards for performance and safety. When you see these marks on our cables, you know you’re installing a product that is verified to handle the demands of PoE.
3. Decades of Manufacturing Expertise
With our extensive OEM/ODM experience, we control every aspect of the manufacturing process. This ensures consistent twist rates, conductor gauge, and jacket quality—all critical factors for delivering stable power and clean data without interference.
Best Practices for a Successful PoE Installation
To ensure a reliable and future-proof PoE network, follow these expert tips:
- Always Use Certified Cables: Start with a quality foundation. Use at least Cat5e, preferably Cat6 or Cat6A, from a trusted manufacturer like D-Lay Cable.
- Respect Distance Limitations: The Ethernet standard has a maximum channel length of 100 meters (328 feet). For high-power PoE, this distance can be shorter due to voltage drop. Always check your equipment’s specifications.
- Plan for Power Budgets: Ensure your PoE switch or injector has enough total power capacity (a “power budget”) to support all the devices you plan to connect.
- Think About the Future: Installing Cat6 or Cat6A today, even for low-power devices, provides a robust infrastructure ready for future upgrades to more power-hungry devices and faster data speeds.
The Final Verdict: Your Path to a Reliable Network
So, can Cat5 cable deliver Power over Ethernet? While technically possible for obsolete Cat5, it is not recommended. Certified Cat5e cable is the reliable and professional minimum for standard PoE applications.
However, for the best performance, safety, and future-proofing—especially with higher-power PoE+ and PoE++ devices—investing in high-quality Cat6 or Cat6A cables is the wisest decision.
At D-Lay Cable, we don’t just sell cables; we provide the backbone for your critical network infrastructure. Our commitment to using pure copper and adhering to strict international certifications ensures that every product we deliver offers unparalleled reliability. Explore our full range of PoE-ready network cables or contact our team to design the perfect cabling solution for your project.
