In the world of network infrastructure, the cables you choose are the foundation of your system’s performance and reliability. While many cables look similar, the standards they are built to can make a world of difference. Two of the most talked-about standards are Category 5 (Cat5) and Category 5 enhanced (Cat5e). But what really separates them, and which one is right for your needs?
As specialists in high-performance network cabling, we at D-Lay Cable want to demystify this topic. dlaycable will break down the crucial differences so you can make an informed decision for a faster, more stable network.
The Quick Answer: Why Cat5e Wins
Let’s get straight to the point: Cat5e is superior to Cat5 in every meaningful way and is the minimum standard you should use for any new network installation. While Cat5 is technically functional for very old, slow networks, it is now considered obsolete.
Cat5e was designed to reliably support faster network speeds (up to 1 Gigabit per second) and to significantly reduce interference between wires, resulting in a more stable and error-free connection.
Cat5 vs. Cat5e: Head-to-Head Comparison Chart
A side-by-side comparison makes the advantages of Cat5e crystal clear. Here’s how the two standards stack up based on key performance metrics.
| Feature | Category 5 (Cat5) | Category 5 enhanced (Cat5e) |
|---|---|---|
| Max Data Rate | 100 Mbps (Fast Ethernet) | 1000 Mbps / 1 Gbps (Gigabit Ethernet) |
| Bandwidth | Up to 100 MHz | Up to 100 MHz (but often tested to 350 MHz) |
| Crosstalk | Meets basic requirements | Meets stricter standards for reduced crosstalk |
| Common Use Case | Legacy 10/100 Mbps networks, telephone lines | Modern home and office LANs, VoIP, Gigabit Ethernet |
| Status | Obsolete | Baseline standard for modern installations |
The Key Technical Difference: Conquering Crosstalk
The most significant upgrade from Cat5 to Cat5e isn’t just about speed—it’s about signal integrity. The real hero of the Cat5e specification is its superior handling of crosstalk.
What is Crosstalk?

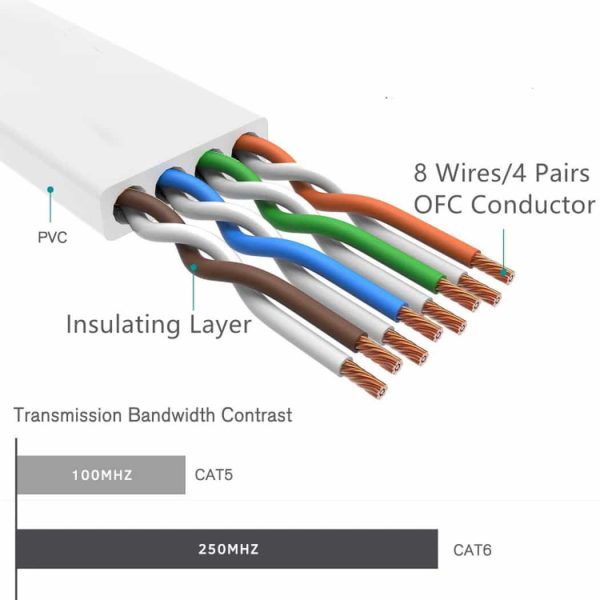

Inside an Ethernet cable, there are four twisted pairs of copper wires. When electrical signals travel down these wires, they create electromagnetic fields that can “bleed over” and interfere with the signals in adjacent pairs. This unwanted signal transfer is called crosstalk, and it can lead to data errors, slower speeds, and dropped connections.
How Cat5e Solves the Problem
The “enhanced” in Cat5e comes from the stricter manufacturing standards designed to combat this interference. Cat5e cables feature:
- A higher twist rate per inch: The wire pairs inside a Cat5e cable are twisted more tightly than in a Cat5 cable. This tighter twist makes the pairs more resistant to picking up interference from their neighbors.
- Stricter testing standards: Cat5e cables must pass more rigorous tests for Near-End Crosstalk (NEXT) and Power Sum Equal-Level Far-End Crosstalk (PS-ELFEXT), ensuring the cable can maintain signal integrity even at Gigabit speeds.
This reduction in crosstalk is precisely what allows Cat5e to reliably support 1000 Mbps speeds where Cat5 would fail.
Practical Questions Answered
Understanding the technical details is great, but how does this apply to your real-world setup?
How Can I Tell Cat5 and Cat5e Cables Apart?
The easiest way is to look at the text printed on the cable’s outer jacket. It will almost always be labeled with the standard it was manufactured to meet. You will see “Category 5” or “CAT5” on the older standard, and “Category 5e,” “CAT5e,” or “Enhanced Category 5” on the newer one.
My Network Still Uses Cat5. Do I Need to Upgrade?
If your internet plan is 100 Mbps or less and you aren’t experiencing connectivity issues, you might not feel an urgent need to upgrade. However, if you plan to:
- Upgrade to an internet plan faster than 100 Mbps.
- Transfer large files between computers on your local network.
- Reduce buffering on streaming devices.
- Improve the reliability of your VoIP phone system.
Then upgrading your existing Cat5 runs to certified Cat5e or Cat6 is a necessary and highly effective improvement.
Can I Mix Cat5 and Cat5e Cables in My Network?
Yes, you can. Network equipment is backward-compatible. However, your network’s performance will be limited by its weakest component. If you connect a Gigabit-capable router to a Gigabit-capable computer with a Cat5 cable, the connection will be bottlenecked and likely run at only 100 Mbps.
The Verdict: Always Choose Cat5e or Higher for New Installations
The conclusion is simple. Cat5 cable is a relic of a past era. For any new project, whether it’s wiring a home office, a new commercial building, or simply buying a patch cord to connect your computer, Cat5e is the absolute minimum standard to consider.
The minimal price difference between Cat5 and Cat5e is insignificant compared to the massive leap in performance and reliability. Choosing Cat5e ensures your network infrastructure is ready for the demands of today’s Gigabit speeds and prepared for the applications of tomorrow.
For those looking to future-proof even further, especially in commercial or data-intensive environments, exploring Cat6 or Cat6a is the logical next step, offering even more bandwidth and performance headroom.
Why Quality Cabling Matters for Your Network
Your network is only as strong as its weakest link. Using poorly constructed or uncertified cables—even if they’re labeled “Cat5e”—can lead to the same crosstalk and performance issues you’d expect from an obsolete standard. That’s why investing in high-quality, certified cabling from a trusted supplier is crucial for achieving the performance you pay for.
At D-Lay Cable, we specialize in manufacturing and supplying a comprehensive range of networking solutions, from UL and ETL certified Cat5e and Cat6 bulk cable to pre-terminated patch cords built for maximum performance. Our commitment to quality ensures your infrastructure is reliable, fast, and built to last.
If you have questions about your next cabling project or need help selecting the right products, contact our team of experts today. We’re here to help you build a better network.
