When you look at the back of your router or a server rack, you’re often met with a rainbow of network cables. Blue, grey, yellow, red—they all seem to connect your world. But it begs the question: does the color of an Ethernet cable actually mean anything? Is a yellow cable faster than a blue one? Is a grey one more reliable?
As experts in custom cable solutions at Dlaycable, we handle this question daily. The short answer is no, the color of the jacket has no impact on a cable’s performance or speed. However, the long answer is that yes, color is an incredibly important tool for organization, safety, and efficiency.
Let’s untangle this topic, so you can understand the hidden language of cable colors and make smarter choices for your network.
Performance is Colorblind: The Jacket’s True Purpose
Let’s be crystal clear: a yellow Cat6 cable will perform identically to a blue Cat6 cable. The same goes for grey, green, or any other color. The plastic PVC or LSZH jacket that gives a cable its color is simply a protective outer layer. Its job is to shield the delicate twisted-pair copper wires inside from physical damage, moisture, and friction. It has no electrical properties and does not influence data transmission speeds, bandwidth, or signal quality.
Think of it like the color of a car. A red car isn’t inherently faster than a black car; what matters is the engine under the hood. For Ethernet cables, the “engine” is the category rating (like Cat6 or Cat8) and the quality of its internal construction.
The Real Value: Color as a Code for Organization
If color doesn’t affect performance, why do we manufacture cables in a dozen different colors at Dlaycable? Because in any network—from a simple home office to a sprawling data center—organization is paramount.
A well-planned color-coding system helps network administrators and technicians to:
- Troubleshoot Faster: When a specific service goes down, you can immediately identify the associated cable run. Is the VoIP phone system acting up? Just trace the red cables.
- Identify Network Functions: At a glance, you can distinguish between different types of network traffic or connections, such as standard user data, Power over Ethernet (PoE) devices, or critical server links.
- Improve Security and Safety: By color-coding critical infrastructure connections (like server-to-switch links) in a distinct color, you reduce the risk of someone accidentally unplugging a vital connection.
- Streamline Maintenance and Upgrades: A color-coded scheme makes it significantly easier to manage moves, adds, and changes within a network infrastructure.
A Guide to Common (But Not Universal) Ethernet Color Schemes
While there is no official, mandated standard from organizations like TIA/EIA for cable color, a set of informal conventions has emerged in the industry. It’s crucial to remember that a network administrator can assign any meaning to any color. However, this table outlines the most common uses for yellow, blue, grey, and other popular colors.
| Color | Common Use Case | Dlaycable Professional Insight |
|---|---|---|
| Blue | Standard LAN connections for user workstations. (PC to wall outlet). | This is the most common color for general-purpose patch cords. We stock high-quality blue cables across all categories, from Cat5e to Cat8. |
| Grey | Often used interchangeably with blue for standard network connections. | Grey is a popular alternative to blue for a more neutral aesthetic. Its function is typically identical to blue unless defined otherwise by the network admin. |
| Yellow | Commonly used for Power over Ethernet (PoE) connections, such as security cameras, VoIP phones, and wireless access points. | While any Cat5e+ cable can carry PoE, using yellow provides an instant visual warning that the cable is supplying both data and power. Dlaycable’s cables use 100% pure copper conductors, ideal for reliable PoE delivery. |
| Red | Critical infrastructure links, servers, storage area networks (SANs), and emergency systems (e.g., VoIP phone network). | Red signifies “do not touch.” It’s reserved for connections where an accidental disconnect could cause a major outage. Think of it as the lifeline of your network. |
| Green | Historically used for crossover cables. Can also denote network-to-network connections. | With modern switches featuring Auto MDI-X, dedicated crossover cables are rare. Green is often repurposed for specific traffic, like guest Wi-Fi. |
| Orange, Purple, White, Black | Miscellaneous or specialized connections defined by the administrator. (e.g., Orange for WAN/modem connection, Purple for specific departmental LANs). | This is where customization shines. Dlaycable provides cables in a full spectrum of colors, allowing you to create a robust, unique coding system for your specific needs. |
What Truly Matters: The “DNA” Inside the Cable Jacket
Now that you know color is for organization, let’s focus on what determines your network’s speed and reliability. When selecting an Ethernet cable, these are the specifications you must pay attention to:

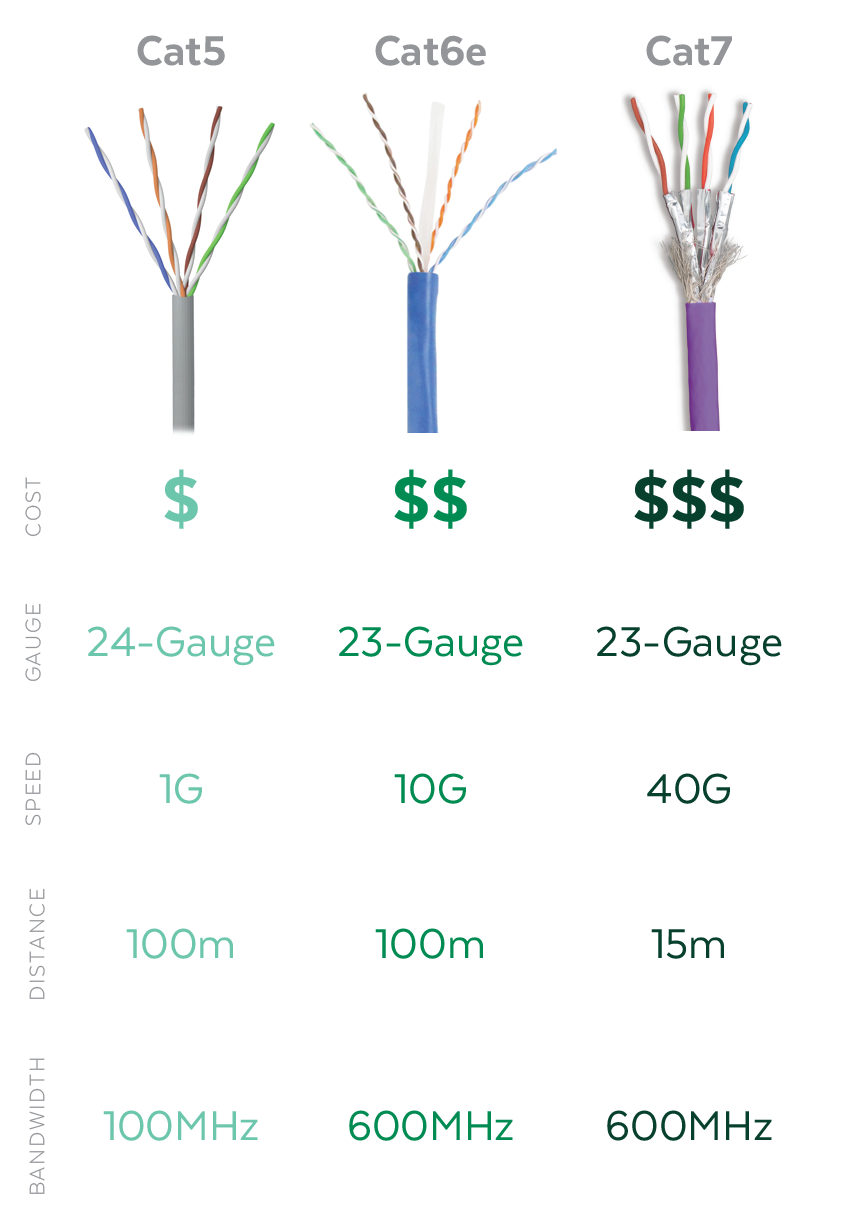

1. Cable Category (The Speed Rating)
This is the most critical factor. Each category is a standard that defines performance capabilities.
- Cat5e: Supports speeds up to 1 Gbps. Suitable for basic home internet and small office use.
- Cat6: Supports up to 10 Gbps over shorter distances (around 37-55 meters) and 1 Gbps over longer runs. Offers better crosstalk protection than Cat5e. It’s the current sweet spot for most new installations.
- Cat6a: Reliably supports 10 Gbps speeds up to the full 100-meter distance. It’s the standard for 10G networks and is excellent for future-proofing.
- Cat8: The powerhouse, supporting speeds of 25 Gbps or even 40 Gbps over short distances. It’s designed for high-speed connections within data centers.
2. Shielding (UTP vs. STP/FTP)
Shielding protects the signal from electromagnetic interference (EMI), which can be caused by power lines, fluorescent lights, and heavy machinery.
- UTP (Unshielded Twisted Pair): The most common type, suitable for typical office and home environments with low EMI.
- STP/FTP (Shielded/Foiled Twisted Pair): Features a layer of foil or braided shielding. Essential for factories, hospitals, and any environment with high EMI, or for high-performance applications like Cat8. Dlaycable offers both UTP and various shielded options to match your environment.
3. Conductor (Solid vs. Stranded)
- Solid Core: A single, solid copper wire per conductor. Best for permanent installations inside walls, ceilings, and for long runs (e.g., bulk cable).
- Stranded Core: Multiple, thinner strands of wire twisted together. More flexible and durable, making it perfect for patch cables that are frequently plugged and unplugged.
Conclusion: Build Your Own Color System with Dlaycable
So, does Ethernet cable color matter? Absolutely—just not for performance. Color is your best tool for creating an organized, efficient, and easy-to-manage network.
The real power lies in establishing your own consistent system. You decide what each color means. For a home network, it could be as simple as:
- Blue: Devices (PC, TV, Gaming Console)
- Yellow: PoE Devices (Security Camera)
- Red: Critical Link (Modem to Router)
For a business, it can be a much more detailed and powerful system. The key is consistency.
At Dlaycable, we don’t just sell cables; we provide solutions. We understand that performance comes from high-quality, certified materials, and efficiency comes from smart organization. That’s why we offer a vast range of Ethernet cables in every category, shielding type, length, and, of course, color.
Need a 2-meter red Cat6a shielded patch cord or a 500-foot spool of bulk blue Cat6 cable? We have you covered. Need a completely custom solution? Our experts are here to help you design and manufacture the perfect cables for your project.
Stop guessing and start organizing. Explore our full selection of high-performance Ethernet cables or contact the Dlaycable team today to build a faster, smarter network.
