Unshielded Twisted Pair (UTP) is the most common networking cable used for Ethernet connections. It consists of insulated copper wires twisted together to cancel out electromagnetic interference.
Table of Contents
- How Does UTP Cable Function?
- An In-Depth Look at UTP Cable Categories
- The Core Components of a UTP Cable
- Key Differences: UTP vs. Shielded Twisted Pair (STP)
- What Are the Primary Applications for UTP Cables?
- Selecting the Right UTP Cable for Your Needs
How Does UTP Cable Function?
The foundational principle behind Unshielded Twisted Pair cable is its ingenious yet simple design. Inside the cable’s outer jacket are four pairs of color-coded copper wires. Each pair is twisted together at a specific, calculated rate. This twisting is not for aesthetics; it is critical for the cable’s performance. When electrical signals travel through a wire, they generate a small magnetic field around them. In a networking environment filled with other cables and electronic devices, these fields can cause electromagnetic interference (EMI), corrupting the data signal.
The twisting mechanism creates a balanced circuit. The two wires in a pair carry equal and opposite signals. The magnetic fields they generate effectively cancel each other out. More importantly, any external EMI that affects the pair will induce a similar interference pattern on both wires. The receiving equipment can then easily identify and filter out this common-mode noise, preserving the integrity of the original data signal. This same principle helps mitigate crosstalk, which is interference between adjacent wire pairs within the same cable. Tighter and more precise twists per inch lead to better noise cancellation and support higher data transmission rates.
An In-Depth Look at UTP Cable Categories
UTP cables are categorized based on their performance capabilities, primarily their supported bandwidth (measured in MHz) and data rate (measured in Gbps). These categories are standardized by organizations like the Telecommunications Industry Association (TIA) to ensure interoperability and performance. Understanding these distinctions is crucial for designing a reliable network.
Category 5e (Cat5e)
*Enhanced Category 5*, or Cat5e, has long been the standard for residential and small office networks. It is designed to support data rates up to 1 Gigabit per second (Gbps) at a bandwidth of 100 MHz. Cat5e offers a significant improvement over its predecessor, Cat5, by implementing stricter specifications for crosstalk. While sufficient for many current applications like web browsing, streaming, and standard office work, its performance can be a limiting factor for more data-intensive tasks or future network upgrades.
Category 6 (Cat6)
Cat6 represents a substantial leap in performance. It features more tightly twisted pairs and often includes a plastic spline that separates the pairs to further reduce crosstalk. This robust construction allows it to support 1 Gbps data rates over the full 100-meter distance and up to 10 Gbps over shorter distances (typically up to 55 meters). With a bandwidth of 250 MHz, Cat6 is a popular choice for modern commercial installations and high-performance home networks, providing more headroom for applications like high-resolution video transfer and low-latency gaming.
Category 6A (Cat6A)
*Augmented Category 6*, or Cat6A, is the standard for high-performance networking. It is specifically designed to reliably support 10 Gbps data rates over the full 100-meter Ethernet channel. Cat6A achieves this with a bandwidth of 500 MHz and even more robust construction to eliminate alien crosstalk—interference from adjacent cables. While thicker and less flexible than Cat6, it is the recommended choice for future-proofing networks, data centers, and environments requiring maximum throughput.
| Category | Max Speed (at 100m) | Bandwidth | Common Application |
|---|---|---|---|
| Cat5e | 1 Gbps | 100 MHz | Home networks, small offices, VoIP |
| Cat6 | 1 Gbps (10 Gbps at <55m) | 250 MHz | Commercial buildings, advanced home networks |
| Cat6A | 10 Gbps | 500 MHz | Data centers, future-proof installations, PoE+ |
The Core Components of a UTP Cable
A UTP cable is more than just a bundle of wires. Each component plays a specific role in its overall performance and safety.
- Conductors: The core of the cable consists of eight copper conductors, arranged in four twisted pairs. These can be *solid conductors*, which are single thick wires offering better performance over long distances, or *stranded conductors*, which are bundles of smaller wires that provide greater flexibility for patch cables.
- Insulation: Each conductor is coated in color-coded plastic insulation. This prevents the wires from touching and shorting out, and the color-coding (e.g., blue/white-blue, orange/white-orange) is essential for correct termination into jacks and plugs.
- Outer Jacket: The entire bundle is encased in an outer jacket, which protects the internal wires from physical damage and moisture. Jacket materials vary by application. A PVC (Polyvinyl Chloride) jacket is standard for general use, while a Plenum-rated jacket is made from fire-retardant, low-smoke materials required for installation in air-handling spaces (plenums).
Key Differences: UTP vs. Shielded Twisted Pair (STP)

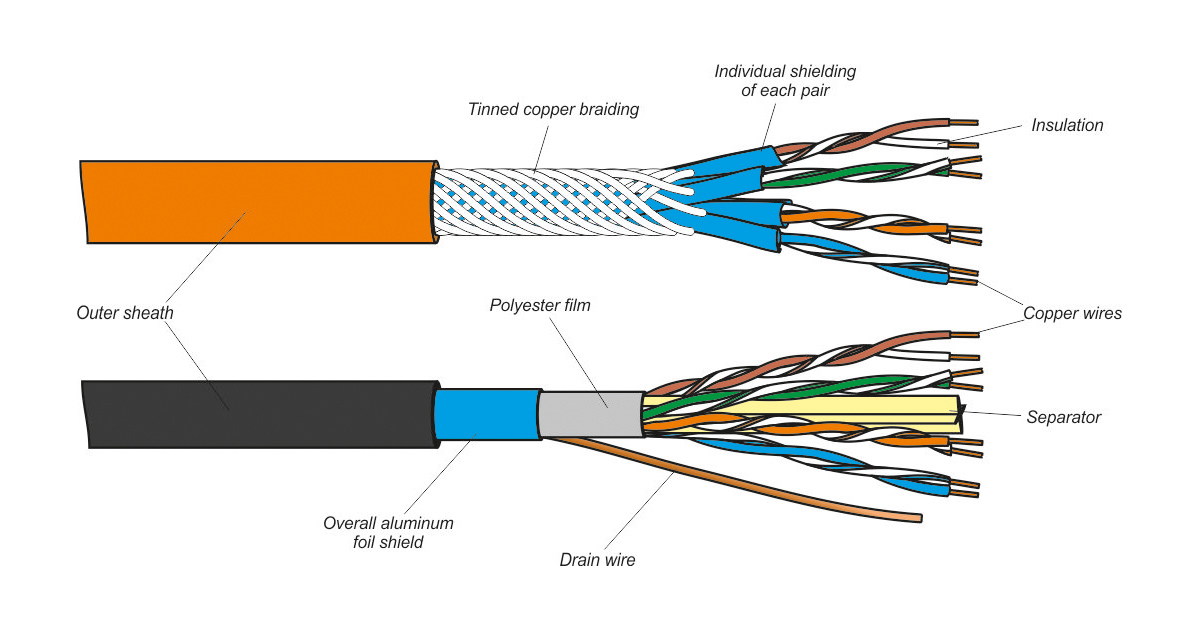

The primary alternative to UTP is Shielded Twisted Pair (STP). As the name implies, STP cables include an additional layer of metallic shielding—either a foil wrap or a copper braid—around the twisted pairs. This shield provides an extra defense against high levels of electromagnetic interference. The choice between UTP and STP depends entirely on the installation environment.
UTP is the more common and cost-effective solution. Its flexibility and smaller diameter make it easier to install in walls, ceilings, and conduits. For most homes, offices, and schools where EMI levels are relatively low, UTP provides more than adequate performance. STP is reserved for environments with significant EMI, such as factories with heavy machinery, hospitals with medical imaging equipment, or airports. The shield must be properly grounded, making installation more complex and expensive. For demanding projects requiring the highest signal integrity, sourcing premium cables from a trusted supplier like D-Lay Cable ensures that all components, whether shielded or unshielded, meet rigorous performance standards.
| Feature | Unshielded Twisted Pair (UTP) | Shielded Twisted Pair (STP) |
|---|---|---|
| EMI Resistance | Good (relies on twisted pairs) | Excellent (relies on shield and twists) |
| Cost | Lower | Higher |
| Installation | Simpler, more flexible | More complex, requires grounding |
| Typical Use | Offices, homes, general networking | Industrial, high-EMI environments |
What Are the Primary Applications for UTP Cables?
The versatility and cost-effectiveness of UTP have made it the backbone of modern data communication. Its use extends far beyond connecting a computer to a wall jack. Today, different categories of UTP cable are used to power and connect a vast array of devices.
In Local Area Networks (LANs), UTP is the standard for connecting workstations, printers, servers, and switches. In residential settings, it connects routers to modems and distributes internet access throughout the home. The rise of Voice over IP (VoIP) telephony relies entirely on UTP cabling to transmit voice data. Furthermore, modern security systems use UTP for IP cameras, often leveraging Power over Ethernet (PoE) to deliver both data and electrical power through a single cable, simplifying installation dramatically.
Selecting the Right UTP Cable for Your Needs
Choosing the correct UTP cable is a critical decision that impacts network performance, reliability, and future scalability. Making an informed choice involves balancing budget, current needs, and anticipated technological advancements. Several factors must be considered to ensure the infrastructure can support your requirements effectively.
Assessing Your Network Speed Requirements
The first step is to identify the data demands of your network. For a typical home or small office primarily used for internet browsing and email, a Cat5e cable may be sufficient. However, for businesses that frequently transfer large files, stream high-definition media, or utilize cloud-based applications, Cat6 is the recommended minimum. It provides the necessary bandwidth to prevent bottlenecks and ensure smooth operation. For new constructions or major renovations, installing Cat6A is a wise investment.
Evaluating the Installation Environment
Consider where the cable will be run. Is it near power lines, fluorescent lights, or large motors? While UTP’s twisted-pair design handles moderate interference well, environments with high EMI may necessitate a move to a shielded cable. Additionally, building codes are a major factor. Any cable run through plenum spaces (like the area above a drop ceiling used for air circulation) must be plenum-rated for fire safety. For vertical runs between floors, riser-rated (CMR) cable is typically required.
Planning for Future Growth
Technology evolves rapidly. A network that is fast today might be slow tomorrow. Installing a higher-category cable than currently required is a strategy known as future-proofing. The incremental cost of installing Cat6A instead of Cat6, for instance, is minor compared to the labor and disruption involved in replacing the entire cable infrastructure later. A robust cabling foundation ensures that your network can accommodate next-generation devices, higher internet speeds, and new technologies as they emerge. High-quality cabling from specialists like D-Lay Cable provides the assurance that your network’s physical layer is built to last.
