FR-CAT5E F/UTP

Product Paramenters

• Item：FR-CAT5EF/UTP
• Type：CAT5EF/UTP

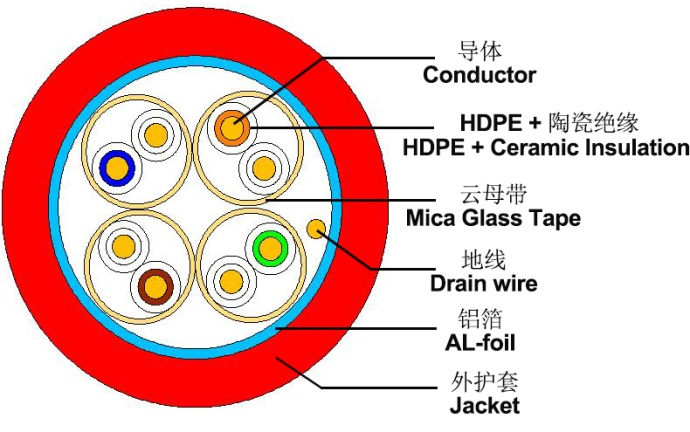

• Shielding structure：F/UTP
• Conductor：SolidBare Copper, 24 AWG
• Conductor diameter：1/0.54mm

(Customized Available)

• Number Of Conductor：4 Pairs
• Insulation Material：HDPE+ Ceramic Polyolefin
• Fire Barrier: Mica Glass Tape
• Drain Wire : 5mm TC
• Shield: AL-Foil
• Jacket：LSZH
• Diameter：8±0.3mm
• Jacket Color：Red
• Length：305m/1000ft per wooden reel
• Packing：wooden reel, 1reel / carton
• Fire Resistant：IEC 60331-23(120min),

BS 6387 CWZ(Optional), EN 50200 (PH120)

• Flame retardant: IEC 60332-1-2
• Halogen Free: IEC 60754-1
• No Corrosive Gas Emission : IEC 60754-2
• Minimum Smoke Emission: IEC 61034-2
• Test：Passed the FLUKE 90m CAT5Echannel test
• Wiring length: ≤ 90m
• Reference Standard：ISO/IEC11801, EN 50173, ANSI/TIA-568.2-D,
• Certificates：CE, RoHS，ISO9001

Customizing：Words on cable & packaging customized on customers’ request
