Fire Resistant LAN Cable Customization Solutions
Fire Resistant LAN Cable
Fire-resistant cables are widely used in various critical facilities and locations with high fire risks, such as buildings, power plants, and chemical plants, and have become a vital component of fire safety in modern society.

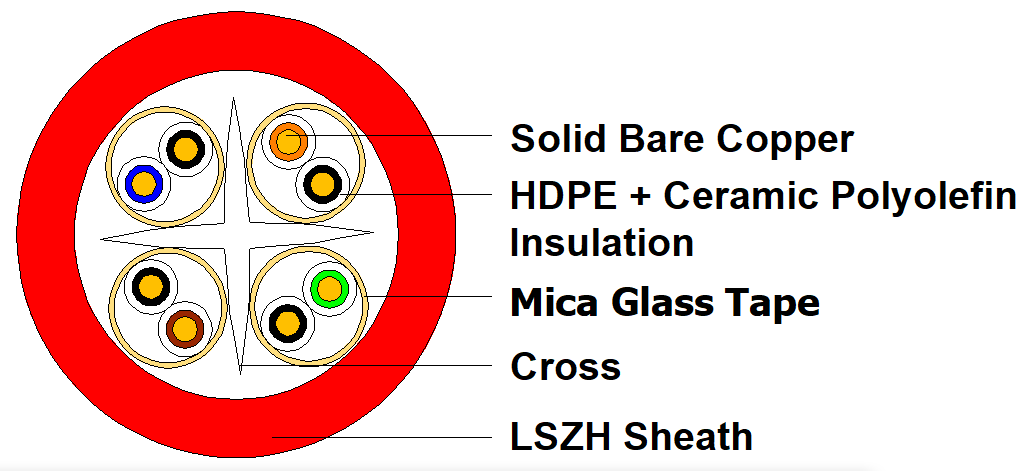

Product Structure
The conductor material is copper with a low melting point and high conductivity to ensure the cable's electrical performance remains unchanged even under high fire temperatures.
The insulation layer is made of HDPE combined with a ceramic material with excellent fire resistance. The ceramic material forms a complete and tight shell under the influence of flames, and does not melt or dissolve in a fire environment, ensuring that the conductors do not short-circuit.
After twisting, the cables are coated with two layers of fireproof tape for double protection, ensuring that the insulation shell does not crack even when the cables are struck by fire, maintaining stable signal transmission.
The sheath is made of a highly flame-retardant, low-smoke, and halogen-free material. It exhibits flame-retardant, low-smoke, and halogen-free properties, and exhibits a certain crusting property during combustion, effectively blocking flames and reducing cable temperatures.
Applicable Standard
| Transmission Performance | Fire Performance |
| ISO/IEC 11801, EN 50173, ANSI/TIA-568.2-D | Circuit Integrity : IEC 60331-23(120min); BS 6387 CWZ(Optional), EN 50200 (PH120) Flame Retardance (Single Vertical Wire ) : IEC 60332-1-2 Halogen Free : IEC 60754-1 No Corrosive Gas Emission : IEC 60754-2 Minimum Smoke Emission : IEC 61034-2 |
Our Fire Resistant LAN Cable Type
The unshielded structure is a low-smoke, halogen-free , high-speed data transmission fire-resistant cable that can ensure stable signal transmission within a certain period of time even in a fire environment. It supports a maximum frequency of 100 MHz
Single shield structure , using aluminum foil shielding to minimize crosstalk and electromagnetic interference, even in a fire environment within a certain period of time can ensure the stable transmission of the signal , supporting the highest frequency of 100 MHz .
The double-shielded structure, using aluminum foil and braided shielding, is suitable for environments with higher security requirements. It ensures stable signal transmission for a certain period of time, even in fire environments. It supports frequencies up to 100 MHz.
Unshielded structure , it is a low smoke, halogen-free , high-speed data transmission fire-resistant cable that can ensure stable signal transmission within a certain period of time even in a fire environment , and supports a maximum frequency of 250 MHz .
Single-shield structure, using aluminum foil shielding to minimize crosstalk and electromagnetic interference, ensures stable signal transmission for a certain period of time even in fire environments, and supports frequencies up to 250MHz.
The double-shielded structure, using aluminum foil and braided shielding, is suitable for environments with higher security requirements. It ensures stable signal transmission for a certain period of time, even in fire environments. It supports frequencies up to 250 MHz.
Unshielded structure , it is a low smoke, halogen-free , high-speed data transmission fire-resistant cable that can ensure stable signal transmission within a certain period of time even in a fire environment , and supports a maximum frequency of 500 MHz .
Single-shield structure, using aluminum foil shielding to minimize crosstalk and electromagnetic interference, ensures stable signal transmission for a certain period of time even in fire environments, and supports frequencies up to 500MHz.
The double-shielded structure, using aluminum foil and braided shielding, is suitable for environments with higher security requirements. It ensures stable signal transmission for a certain period of time, even in fire environments, and supports frequencies up to 500 MHz.
Our Advanced Production Equipment
At DLAY Cable, we don’t just talk about quality; we build it. We’ve invested heavily in cutting-edge machinery, specifically designed for maximum efficiency, precision, and unwavering quality assurance. This isn’t set-it-and-forget-it gear; our state-of-the-art equipment undergoes rigorous maintenance and continuous testing. This commitment ensures every single Cat6 cable we produce not only meets the highest international standards but consistently exceeds your performance expectations on the job.
Production Capacity & Company Scale
We operate out of a 7,000-square-meter facility that includes a truly flexible processing setup. This means we’ve got the space and operational agility to effortlessly accommodate varying production demands, from specialized smaller runs to massive bulk orders.
Our output isn’t just theory. We consistently produce over 30,000 cases of cable every month. This significant capacity ensures DLAY Cable provides a steady and reliable supply, confidently meeting the requirements of both large-scale distribution and urgent, smaller project needs.
Production Capacity & Company Scale
We strictly select high-purity copper and top-grade insulation materials compliant with international standards, laying a solid foundation for superior-quality cables.
Using high-precision drawing equipment, the conductor is refined to the specified dimensions and uniformity, ensuring excellent conductivity.
Advanced extrusion techniques apply durable insulation and sheathing layers evenly, ensuring long-term stability throughout the cable’s operational life.
Our precise stranding operations ensure a tightly bonded internal cable structure, enhancing signal transmission quality and mechanical strength.
Every cable undergoes stringent quality testing and inspection before leaving the factory, guaranteeing full compliance with international standards.
Shielding Options:
Add or remove shielding layers to suit the electromagnetic environment of your application.
Specialized Jackets & Layers:
Integrate outdoor-rated jackets, fire-resistant layers, or armoring to withstand harsh weather conditions, fire hazards, or mechanical stresses.
Absolutely. Our Cat6 Ethernet cables are engineered with high-quality oxygen-free copper conductors that provide excellent power transmission capabilities. This makes them fully compatible and reliable for all standard Power over Ethernet (PoE) applications, including PoE+, ensuring stable data and power delivery to your IP cameras, VoIP phones, and access points.
We understand diverse project needs. While we handle large-scale orders efficiently (our monthly output is over 30,000 cases), we also offer flexible MOQ options for our Cat6 bulk cables. For specific quantities or custom requirements, we recommend contacting our sales team directly; they can provide detailed information tailored to your order.
Certainly. While many standard Cat6 cables are for indoor use, DLAY Cable offers specialized Cat6 jacket types designed for more challenging environments. We provide options like PE (Polyethylene) jackets for outdoor installations, offering enhanced UV and moisture resistance, and TPU/PUR jackets for industrial settings requiring superior abrasion, oil, and chemical resistance. Let us know your application, and we’ll recommend the right solution.
Yes, absolutely. All DLAY Cable Cat6 products are backed by a comprehensive warranty. We guarantee our cables against manufacturing defects and ensure they meet all stated performance specifications. For the precise warranty duration and complete terms tailored to your region and specific product line, we encourage you to contact our sales team directly or refer to the official product documentation. They can provide all the exact details you need.
