Fire Resistant CAT6A S/FTP Cable

Product Paramenters

• Item：FR-CAT6AS/FTP
• Type：CAT6A S/FTP

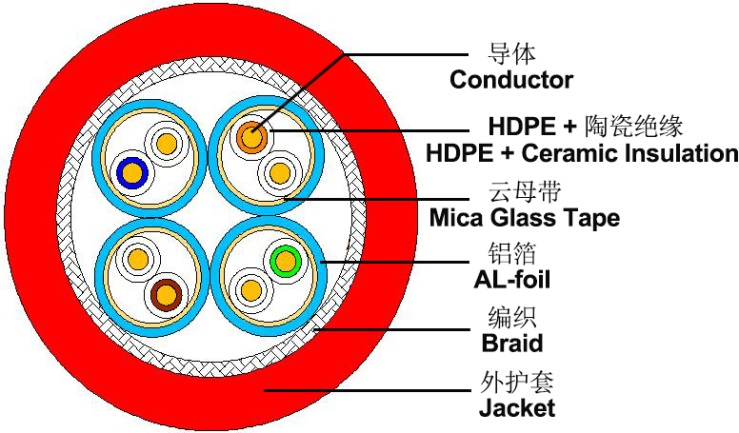

• Shielding structure：S/FTP
• Conductor：SolidBare Copper, 23AWG
• Conductor diameter：1/0.58mm

(Customized Available)

• Number Of Conductor：4 Pairs
• Insulation Material：Foam PE+ Ceramic Polyolefin
• Fire Barrier: Mica Glass Tape
• Pair Shield: AL-Foil
• Braid : 96*0.16mmTC, 65% Coverage(Optional)
• Jacket：LSZH
• Diameter：6±0.3mm
• Jacket Color：Red
• Length：305m/1000ft per wooden reel
• Packing：wooden reel, 1reel / carton
• Fire Resistant：IEC 60331-23(120min),

BS 6387 CWZ(Optional), EN 50200 (PH120)

• Flame retardant: IEC 60332-1-2
• Halogen Free: IEC 60754-1
• No Corrosive Gas Emission : IEC 60754-2
• Minimum Smoke Emission: IEC 61034-2
• Test：Passed the FLUKE 80m CAT6Achannel test
• Wiring length: ≤ 80m
• Reference Standard：ISO/IEC11801, EN 50173, ANSI/TIA-568.2-D,
• Certificates：CE, RoHS，ISO9001

Customizing：Words on cable & packaging customized on customers’ request
