Not all factories are guaranteed to pass the Fluke test DLAY Cable FLUKE 90m permanent link as standard

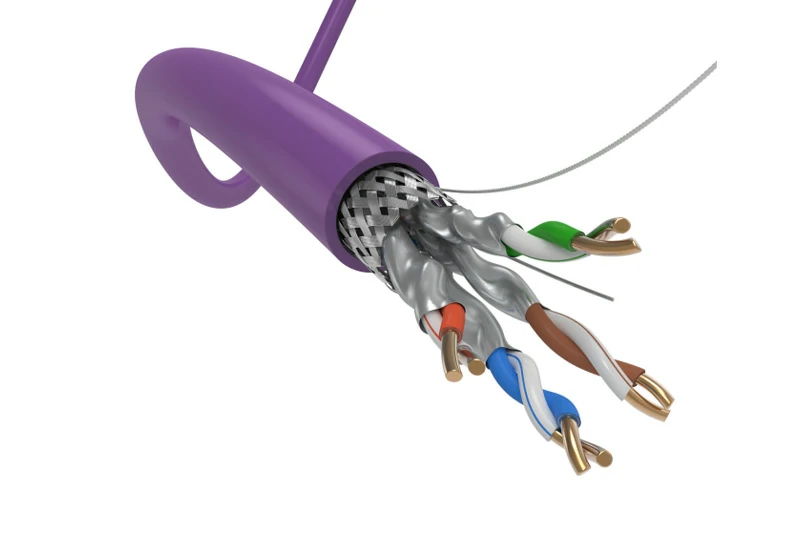

Indoor Cat7A S-FTP Cable

Product Paramenters
· Item:Indoor S-FTP Cat7A Cable 305m
· Type:CAT7A

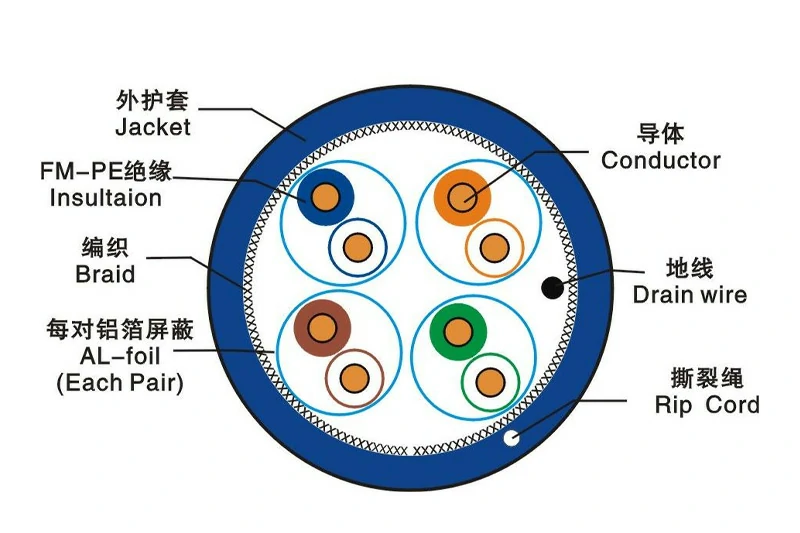

· Shielding structure:S-FTP
· Conductor:Bare Copper,23 AWG
· Number Of Conductor:4 Pairs
· Conductor diameter:1/0.60mm, 1/0.62mm (Customized Available)
· Insulation Material:Foam PE
· Insulation Dia.:
· Pair Shield:65U*14mm AL Foil for each pair
· Braiding:96*0.12mm ALM, 0.1mm TC
· Drain wire:0.4mm ,TC, TCCAM
· Jacket:PVC, LSZH, PE (outdoor), PVC+PE double sheath
· Diameter:7.8±0.3mm
· Thickness:0.6±0.05mm
· Flame Ratardancy:CM,CMX,CMR,CMP,Fca,Eca,Dca,Cca,B2ca
· Color:As client’s request
· Length:305m(1000ft )/Drum, 500m/Drum
· Packing:Wooden spool(wooden drum)
· Test:100% Passed the FLUKE 90M link and 100M channel test
· Reference Standard:YD / T 1019-2001;ISO / IEC 11801;ANSI / TIA / EIA-568B
· Certificates:CE, RoHS,ISO9001
· Customizing:Words on cable & packaging customized on customers’ request
