Introduction: The Data Lifeline of Smart Cities
Smart cities use data to manage everything. They control traffic lights with sensors. They monitor public safety with cameras. They even manage water and electricity with smart grids. This data must move through network cables every second.
But many people forget a big danger. Fire can destroy these cables in minutes. If the network fails during a fire, the city becomes blind. Emergency teams cannot communicate. Smart locks might not open. This is why we need circuit integrity.
At DLAY, we make high-performance cables. We understand that smart cities need more than just speed. They need a network that stays alive during a crisis. This article explains why fire-resistant LAN cables are the true foundation of urban intelligence.
What is Circuit Integrity? The Ability to Survive

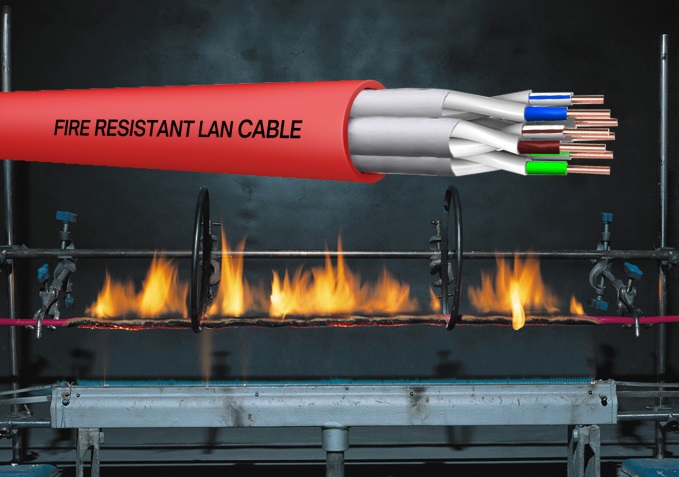

Circuit integrity is a technical term. It describes a cable that keeps working during a fire. Most cables are just “flame retardant.” They stop the fire from spreading, but they melt and stop sending data.
Cables with circuit integrity are different. They use special barriers to protect the copper wires. The signal continues to flow even when the temperature is very high.
| Feature | Flame Retardant Cable | Circuit Integrity Cable (DLAY) |
| Reaction to Fire | Stops the fire from moving | Keeps the signal moving |
| Data Transmission | Fails quickly in high heat | Works for up to 120 minutes |
| Material | Standard LSZH / PVC | Ceramic Polyolefin + Mica Tape |
| Primary Goal | Protect the building | Protect the data and people |
Dive Deeper: Critical Applications in Smart Infrastructure
Emergency Response and Public Alarms
In a fire, every second is important. The smart city system must send alerts to everyone. It must also guide people to the nearest exit.
If the LAN cables melt, the speakers and digital signs go dark. DLAY fire-resistant cables ensure these systems stay online. They provide the “Golden 120 Minutes” for a safe evacuation.
Underground Tunnels and Metro Systems
Smart cities have huge underground networks. These spaces are very dangerous during a fire because of smoke. Ventilation fans must run to clear the air.
These fans need data signals to coordinate. Our cables follow the BS 6387 CWZ standards. They can handle fire, water from sprinklers, and even falling debris. This keeps the fans spinning and the lights on.
Industrial IoT and Smart Power Plants
Smart cities rely on local power and factories. A fire in a power plant is a disaster. If the control sensors stop working, the engineers lose control.
Circuit integrity cables prevent this. They allow the machines to shut down safely. This stops the fire from causing an explosion or a total blackout.
Technical Standards: The Global Safety Language
Smart city projects have very strict rules. You must use cables that pass international tests.
| Standard | Test Temperature | Time Requirement | Additional Stress |
| IEC 60331-23 | 750°C – 950°C | 90 – 120 Minutes | None (Flame only) |
| BS 6387 (C) | 950°C | 180 Minutes | None |
| BS 6387 (W) | 650°C | 15 Minutes | Water spray (Sprinklers) |
| BS 6387 (Z) | 950°C | 15 Minutes | Mechanical Shock (Vibration) |
| EN 50200 | 842°C | Up to 120 Minutes | Mechanical Shock |
Dive Deeper: How DLAY Builds a Fireproof Brain
Ceramic Polyolefin Insulation
We use a special ceramic material for insulation. When this material burns, it does not turn into liquid. Instead, it turns into a hard, protective shell. This shell keeps the copper wires separated. It prevents short circuits in the middle of a fire.
The Power of Mica Glass Tape
We wrap each pair of wires in Mica Glass Tape. Mica is a natural mineral that can resist extreme heat. It acts like a heat shield for the data. Even if the outer jacket is gone, the Mica tape keeps the signal stable.
Health and Environment: The LSZH Standard
Smart cities also care about the environment. Our fire-resistant cables use Low Smoke Zero Halogen (LSZH) jackets.
Standard PVC cables release acid gas when they burn. This gas is toxic to humans. It also eats through electronic hardware. LSZH materials produce very little smoke. They do not contain halogens. This makes the building safer for people and for the expensive smart city equipment.
Reliability: The 100% Fluke Test Guarantee
A cable is only good if it works perfectly before the fire. We test every reel with a Fluke network analyzer. We check the bandwidth for CAT5e, CAT6, and CAT6A.
We ensure our cables have a high “margin.” This means they perform better than the minimum requirement. In a smart city, you need this extra strength to handle long distances and interference.
Strategic Value: Reducing Risk and Cost
Buying circuit integrity cables is a smart investment.
-
Legal Compliance: Most smart city codes now require fire-rated data lines.
-
Insurance Savings: Safe buildings often have lower insurance costs.
-
Public Trust: People feel safer in a city that invests in high-quality infrastructure.
How to Choose the Right Fire-Resistant Cable
You must look for the certification marks. Always ask for the IEC 60331 or BS 6387 test reports.
Check the jacket color. Most fire-resistant cables are bright red. This helps technicians identify them quickly during maintenance. At DLAY, we offer many types of shielding, like F/UTP or S/FTP, to match your specific smart city needs.
Conclusion
Smart cities are more than just fast internet. They are about keeping people safe and connected. Circuit integrity is the most important part of this mission. Fire-resistant LAN cables protect the city’s nervous system when things go wrong. DLAY provides the R&D and manufacturing power to make these cities a reality. Choose cables that work when you need them most.
