The Professional’s Guide: How to Certify Cat6 Cable for Peak Network Performance

At D-Lay Cable, we don’t just manufacture high-performance network cabling; we provide the foundation for reliable, high-speed digital infrastructure. As a factory-direct supplier with extensive OEM/ODM experience and key certifications like UL, ETL, and CPR, we understand that the quality of a cable is only proven upon installation. A critical step in this proof is certification. dlaycable will walk you through the process, ensuring your network not only works but performs to the exact TIA standards it was designed for.

1. What Exactly is Cat6 Cable Certification?

Cable certification is the most rigorous form of testing for network cabling. It’s a formal process that compares the performance of an installed cable link against a predefined standard, typically from the Telecommunications Industry Association (TIA). It’s not just a simple check to see if the wires are connected correctly.

• Verification: This basic test checks for continuity and correct wire mapping. It tells you the cable is connected, but not how well it will perform under load.
• Qualification: This test goes a step further, determining if an existing cabling link can support certain network speeds and technologies (e.g., 1000BASE-T).
• Certification: This is the gold standard. It uses a sophisticated field tester to measure a wide range of performance parameters against TIA/EIA-568 standards. A “Pass” result guarantees that the link meets all Cat6 performance requirements.

2. Why is Certifying Your Cat6 Installation Crucial?

Skipping certification might save a few minutes, but it can lead to significant problems down the line. For any professional installer or network administrator, certification is non-negotiable.

• Guaranteed Performance: It’s the only way to ensure your cabling will support Cat6 speeds (1 Gbps up to 100 meters and potentially 10 Gbps over shorter distances) without errors.
• Client Confidence & Professionalism: Providing a client with official “Pass” reports demonstrates quality workmanship and proves the infrastructure you installed meets industry specifications.
• Manufacturer Warranties: Many cabling system manufacturers, including us at D-Lay Cable, require certification reports to validate performance warranties.
• Faster Troubleshooting: Certified links eliminate the physical cabling as a potential problem source, allowing IT teams to focus on active equipment or software issues in the future.

3. The Essential Toolkit for Flawless Cat6 Certification

Achieving a “Pass” result depends on two things: proper installation technique and the right tools. The equipment you use is just as important as the cable itself.

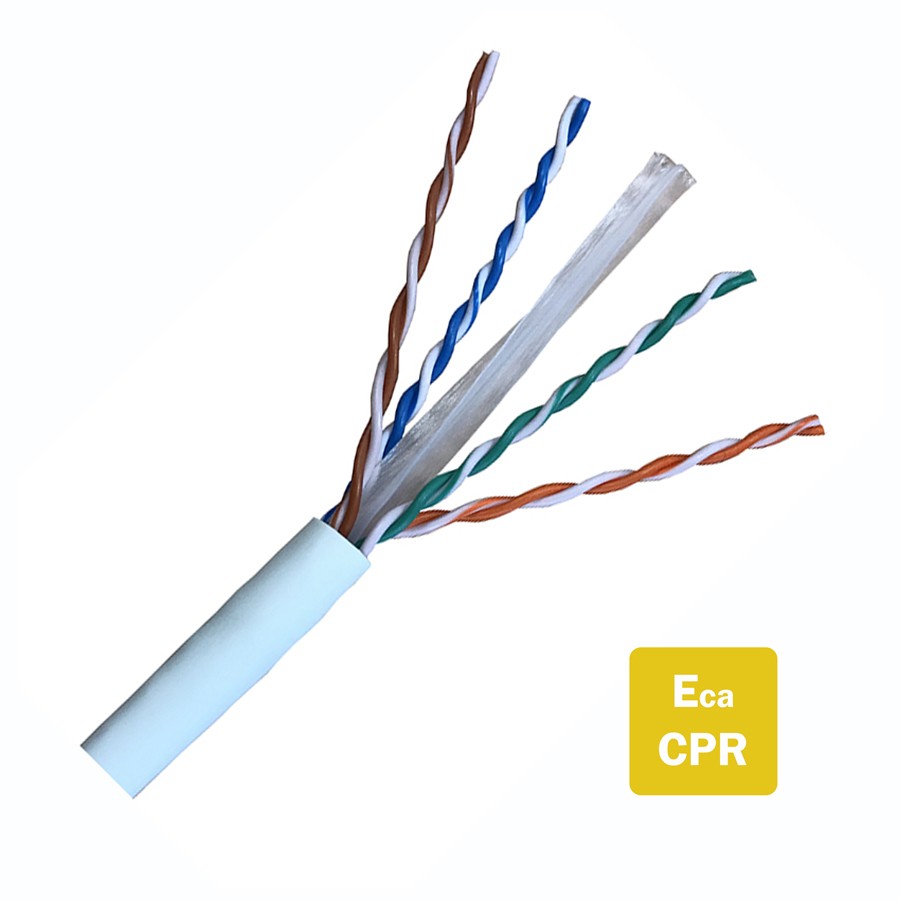

High-Quality, Standards-Compliant Cat6 Cable

Certification starts with a superior product. A cable that barely meets a standard in the lab may fail in the field due to installation stress. Using a robustly engineered cable like those from D-Lay Cable, which are UL and ETL listed and often exceed TIA specifications, gives you critical performance headroom and dramatically increases your chances of passing the first time.

A Professional Cable Certifier

This is the most critical piece of equipment. Simple continuity testers cannot certify a cable. You need a field-testing device designed for this purpose. Industry leaders include:

• Fluke Networks (e.g., DSX CableAnalyzer™ Series)
• Softing (e.g., WireXpert)
• TREND Networks (e.g., LanTEK)

These devices are an investment, but they are essential for professional work. They test for crosstalk, return loss, attenuation, and dozens of other parameters that simple testers cannot see.

Quality Installation Tools

Ensure your crimpers, punch-down tools, and cable strippers are in good condition and designed for Cat6. Poor terminations are the #1 cause of certification failures.

4. Step-by-Step Guide to Certifying Cat6 Cable

With your D-Lay Cable installed and your tools ready, follow these steps for a successful certification test.

Step 1: Pre-Test Preparation – The Foundation of Success

Before you even connect the tester, ensure the installation itself is sound. This prevents easily avoidable failures.

• Respect Bend Radius: Do not bend the cable tighter than 4 times its outer diameter.
• Proper Termination: Ensure pairs are untwisted as little as possible (ideally less than 0.5 inches or 13 mm) before being terminated into a jack or plug.
• Avoid Cable Stress: Do not pull the cable with excessive force, and avoid kinking, crushing, or stapling it tightly.
• Mind the Distance: The total length of a permanent link (from patch panel to wall outlet) should not exceed 90 meters (295 feet). The total channel (including patch cords) should not exceed 100 meters (328 feet).

Step 2: Setting Up Your Cable Certifier

Power on your certifier and configure the test parameters correctly.

1. Select the Test Standard: Choose the correct standard from the menu. For a link from a patch panel to a keystone jack, you will almost always use “TIA Cat 6 Permanent Link.”
2. Enter Cable Information: Input the cable manufacturer (like D-Lay Cable) and the specific cable model. This helps in organizing your test reports.
3. Set the NVP (Nominal Velocity of Propagation): This value, usually printed on the cable jacket or spec sheet, is crucial for accurate length measurement. Getting it right ensures your length test is valid.

Step 3: Executing the Test

Connect the main unit of the certifier to one end of the link (e.g., the patch panel) and the remote unit to the other end (e.g., the wall outlet) using the appropriate permanent link adapters. Press the “TEST” button. The test typically takes only a few seconds.

Step 4: Interpreting the Test Results

The certifier will provide an immediate result: a green PASS or a red FAIL. A “Pass” means the link meets all Cat6 performance metrics. If you receive a “Fail,” the device will usually indicate which specific parameter was not met, pointing you toward the problem.

5. Understanding Key Certification Parameters (Decoding the Results)

When you look at a test report, you’ll see many acronyms. Here are the most important ones:

• Wire Map: Checks for correct pin-to-pin termination and shorts, opens, or crossed pairs. A failure here is almost always a termination issue.
• NEXT (Near-End Crosstalk): Measures the signal bleed from one pair to another at the same end of the cable. A failure often points to poor termination (untwisted pairs).
• Return Loss (RL): Measures signal reflections caused by impedance mismatches. A failure can indicate a bad connector, poor termination, or a damaged cable.
• Insertion Loss (Attenuation): Measures the signal strength lost over the length of the cable. A failure usually means the cable is too long or of poor quality.
• Length: Measures the physical length of the cable. As mentioned, it must be under 90m for a permanent link.

6. What to Do When a Cable Fails the Test?

Don’t panic. A “Fail” result provides valuable diagnostic information.

1. Identify the Failed Parameter: Look at the report to see what failed (e.g., NEXT, Return Loss).
2. Check Terminations First: The vast majority of failures occur at the connection points. Re-terminate both ends of the cable, being extra careful to minimize untwisting of the pairs.
3. Analyze the Location of the Fault: Advanced certifiers have HDTDR/HDTDX functions that can pinpoint the exact distance to the fault, telling you if the problem is at the near end, far end, or somewhere in the middle of the cable.
4. Replace Components: If re-terminating doesn’t work, try replacing the keystone jack or patch panel port. In rare cases, the cable itself may be kinked or damaged and may need to be re-pulled.

7. The D-Lay Cable Advantage: Start with a Certifiable Foundation

The goal is to pass certification on the first try, saving you time, labor, and money. This is where choosing the right supplier is paramount. At D-Lay Cable, we design our products for real-world installation success.

• Performance Headroom: Our cables are engineered to exceed TIA standards, providing a buffer that accommodates minor installation imperfections.
• Quality Materials: We use 100% solid bare copper conductors for optimal signal transmission and PoE performance, which is a key factor in passing certification tests.
• Consistency & Reliability: As a factory with stringent quality control and UL/ETL certification, every box of D-Lay Cable performs as expected, eliminating cable quality as a variable.

By starting your project with D-Lay Cable’s high-performance Cat6 cabling and components, you are building a network foundation that isn’t just designed to pass certification—it’s engineered for years of reliable, high-speed service.
