Introduction
Have you ever tangled with a mess of Ethernet cables and wondered why they’re different colors? It’s not just for looks—Ethernet cable color codes are the unsung heroes of network reliability and safety. Whether you’re setting up a home office or managing a sprawling data center, understanding these codes can save you time, money, and frustration. In this guide, we’ll unravel the mystery of Ethernet cable color codes, dive into the T568A and T568B standards, and show you how to apply them like a pro.
What Are Ethernet Cable Color Codes?
Ethernet cable color codes are a standardized way to organize and identify the twisted pairs of wires inside an Ethernet cable. These colors—typically eight distinct shades within a twisted-pair cable—tell you which wire does what, like transmitting or receiving data. Beyond the internal wiring, external jacket colors (e.g., blue, yellow, gray) often indicate a cable’s purpose or destination in a network, though this varies by organization. This system minimizes wiring errors, speeds up installations, and makes troubleshooting a breeze.
Common Standards: T568A vs. T568B
Two standards dominate Ethernet wiring: T568A and T568B. Both arrange the eight wires in a specific order, but they differ in how they assign the green and orange pairs.

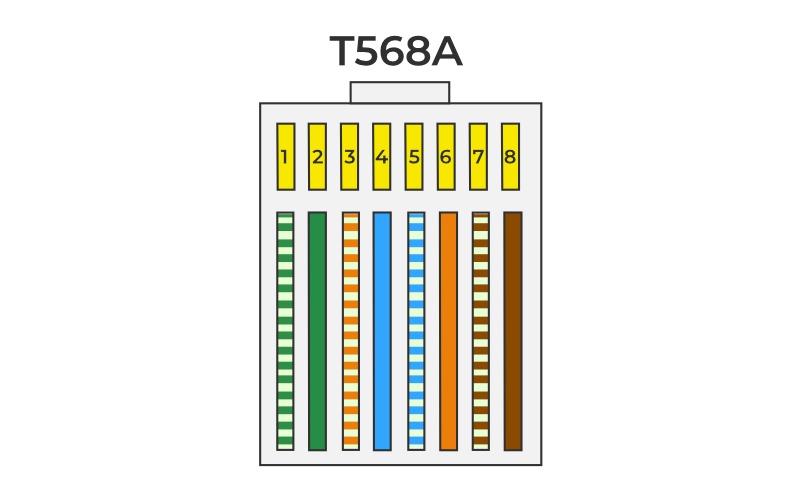

T568A
- Best For: Residential setups, legacy systems.
- Pin Assignment:
- Pin 1: White/Green (TX+)
- Pin 2: Green (TX-)
- Pin 3: White/Orange (RX+)
- Pin 6: Orange (RX-)
- Pins 4, 5, 7, 8: Blue, White/Blue, White/Brown, Brown (unused in 100Mbps).
T568B
- Best For: Commercial setups, modern networks.
- Pin Assignment:
- Pin 1: White/Orange (TX+)
- Pin 2: Orange (TX-)
- Pin 3: White/Green (RX+)
- Pin 6: Green (RX-)
- Pins 4, 5, 7, 8: Same as T568A.
Key Difference: T568A swaps the green and orange pairs compared to T568B. T568B is more common today due to its better noise resistance, but consistency matters more than the choice—use the same standard on both ends!
How to Use Ethernet Cable Color Codes
Wiring an Ethernet cable is straightforward if you follow these steps:
Making a Straight-Through Cable (T568B)
- Tools: Ethernet cable, RJ45 connectors, crimping tool, wire stripper.
- Prep: Strip 1-2 inches of the outer jacket to reveal the twisted pairs.
- Arrange: Untwist and align wires in T568B order: White/Orange, Orange, White/Green, Blue, White/Blue, Green, White/Brown, Brown.
- Trim: Cut wires to 0.5 inches, keeping twists intact to reduce crosstalk.
- Connect: Insert into an RJ45 connector and crimp firmly.
- Test: Use a cable tester to confirm the sequence.
For a crossover cable (e.g., connecting two PCs directly), wire one end as T568A and the other as T568B.
Why Are Ethernet Cable Color Codes Important?
Ignoring color codes is a recipe for chaos. Here’s why they matter:
- Reliable Connections: Correct wiring ensures data flows smoothly.
- Faster Fixes: Spot issues quickly in a color-organized network.
- Safety First: Proper wiring prevents shorts or fire risks.
- Scalability: Standardized setups simplify upgrades.
A study by the TIA found that miswired networks can increase downtime by up to 30%. Don’t let that be you!
Applications of Ethernet Cable Color Codes
Color coding shines in real-world scenarios:
- Home Networks: Blue for your router, green for your gaming console.
- Offices: Yellow for workstations, red for VoIP phones.
- Data Centers: Entire racks color-coded for servers, switches, and storage.
Some companies even customize external jacket colors for specific roles—imagine gray for PoE devices and purple for security systems.
Considerations for Effective Use
- Stick to One Standard: Mixing T568A and T568B causes headaches.
- Check Compatibility: Older gear might demand T568A.
- Minimize Untwisting: Keep pairs twisted up to the connector for signal integrity.
- Plan Ahead: Color-code with future expansions in mind.
Troubleshooting Tips
Common problems? Here’s how to fix them:
- No Connection: Check for swapped pairs with a tester.
- Slow Speeds: Ensure no more than 0.5 inches of wire is untwisted.
- Interference: Reroute cables away from power lines.
Conclusion
Ethernet cable color codes aren’t just technical jargon—they’re your ticket to a fast, safe, and organized network. Master T568A and T568B, apply them consistently, and watch your connectivity woes disappear. Need top-tier cables to match your skills? Guangdong DLAY Cable Technology Co., Ltd. has you covered with industry-leading solutions.
